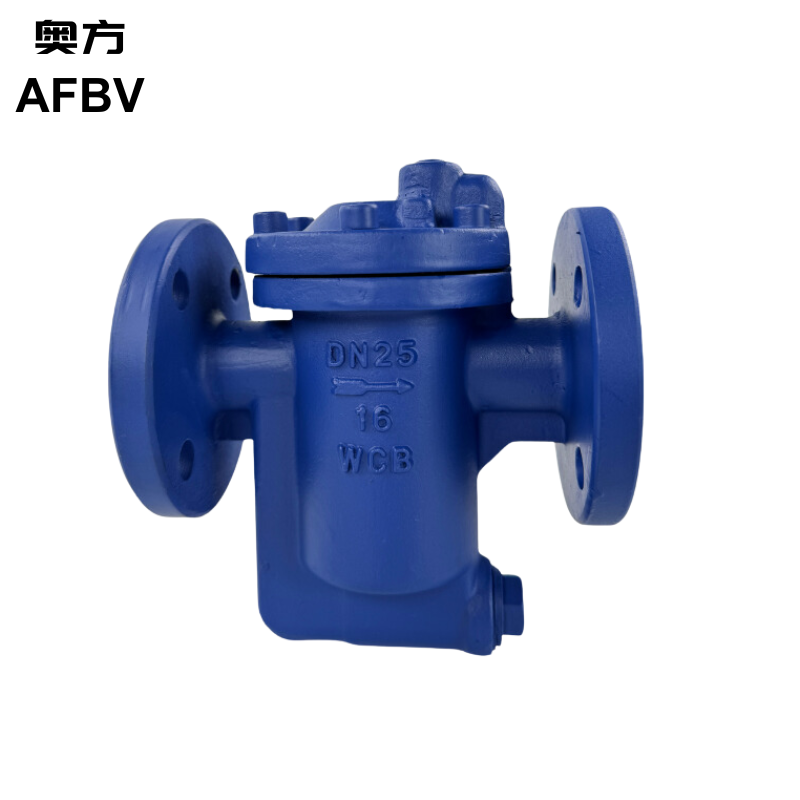

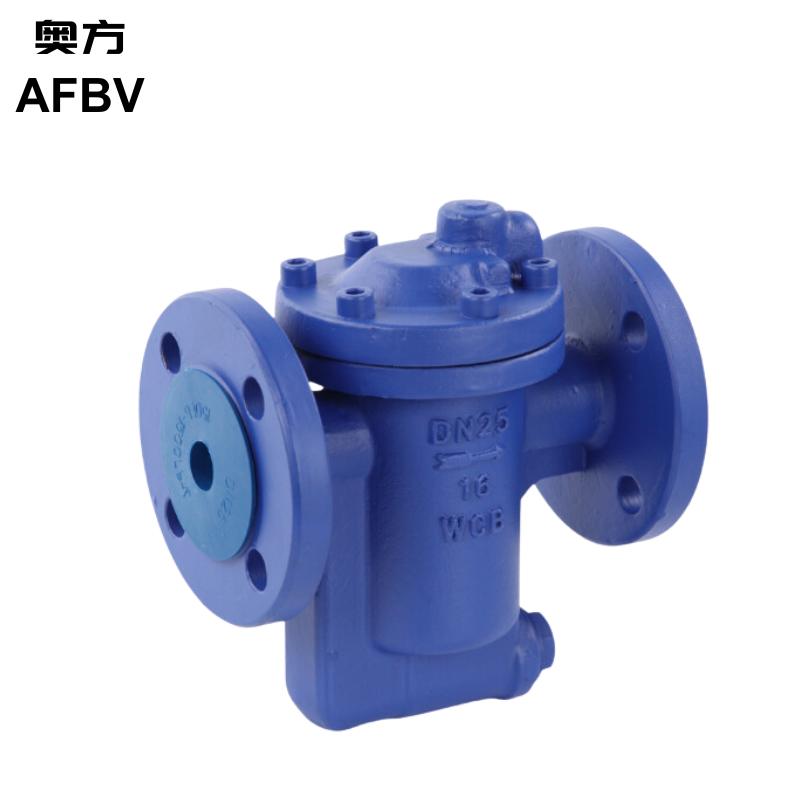

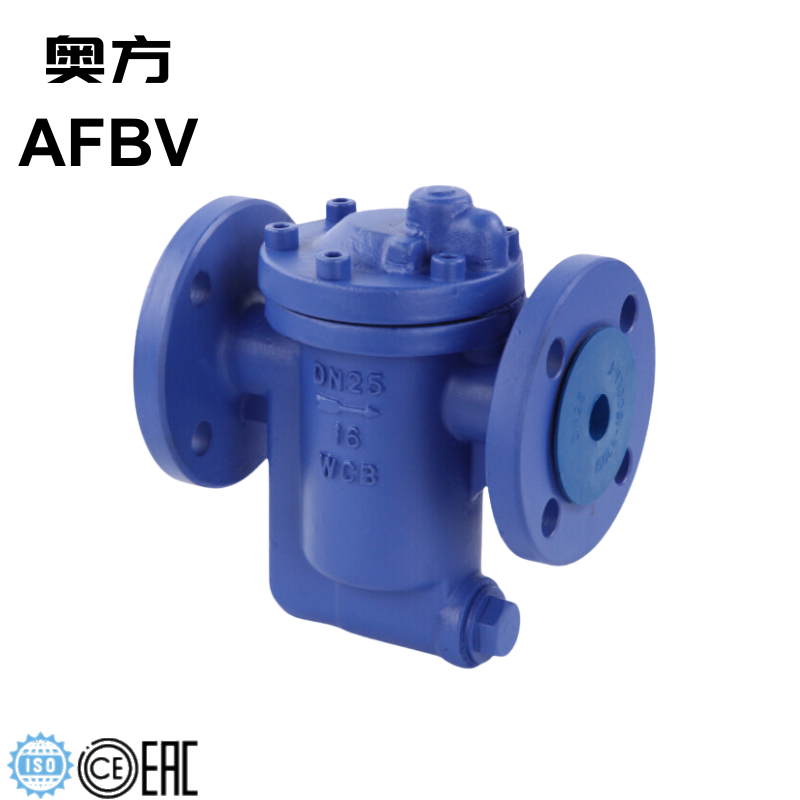

881 Bucket Trap Steam Valve

Introduction

Inverted bucket type steam trap,as a mechanical steam trap, has outstanding performance and can be used low ,medium and high pressure.It applies stainless steel internal components and heat treatable steel base . It has such features as strong structure,resistance to abrasion and corrosion, long durability, and not easy to be damaged. It is highly recommended to be used for condensate recovery sustem for its steam saving capability, High heat engine efficiency , and anti-back pressure characteristic. The trap may be assembled with check valve so as to save piping space.

Advantage

1. Good air exhaust performance, with overflow exhaust holes on the inverted bucket, which can effectively prevent steam lock and air blockage. 2.Allow for high back pressure, with a back pressure rate of 85%. 3.Easy to repair, the internal parts are made of stainless steel, all installed on the valve cover, and equipped with a filter screen device, making daily maintenance convenient.
   Technical Specification
   Normal Size Range: 1/2″-3″ (DN15-DN80)
   Normal Pressure Rating: PN16~PN40
   Material: WCB, CF8,CF8M,CF3,CF3M
   Temperature Range: -29~350 Degree C
   Medium: steam condensate;Standards compliance
   Design and Manufacture: GB/T12247
   Face to face(end to end): GB/T12247
   Flanged connection: GB/T 9113
   Test and inspection: GB/T 13927
